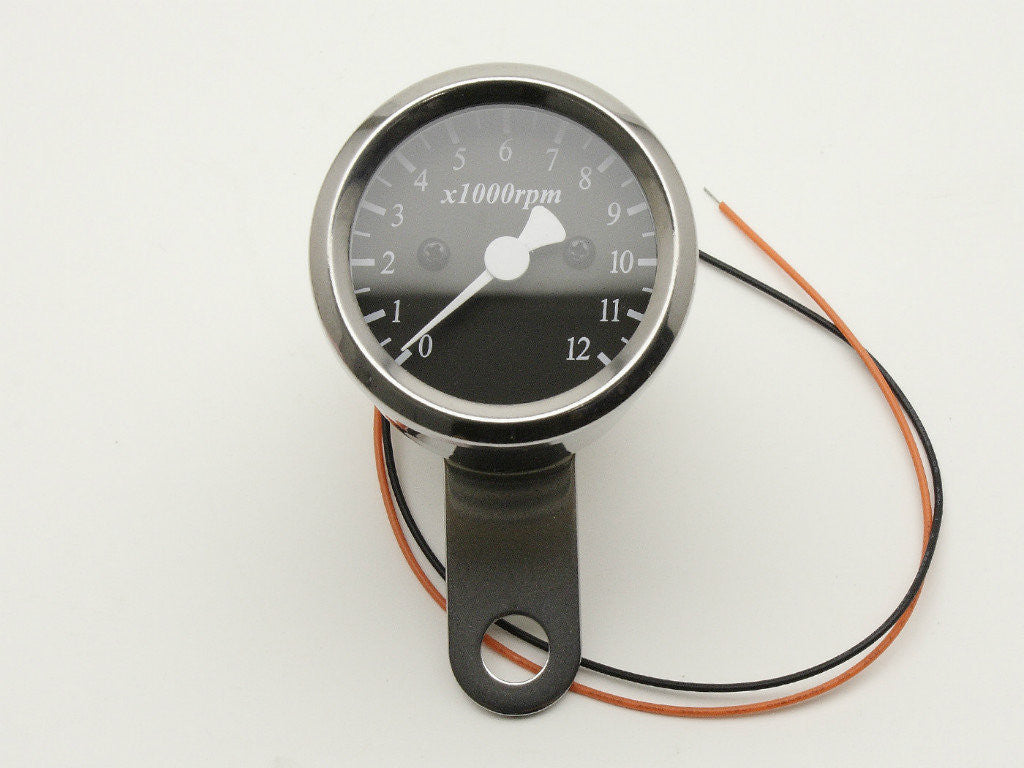

Tacho, 48mm, Black Face, Polished Body

Polished stainless steel bezel, body and bracket. Black face.

Extra small tacho. Matches our 48mm speedo.

Features:

- 0-12,000RPM,

- incandescent bulb backlight,

- includes stainless steel mounting bracket,

- bezel diameter 52mm,

- body diameter 47.5mm,

- length 51.5mm (not including the tacho cable spigot),

Cable spigot size is M12 with 1mm thread pitch.

Note: gauge fitted to bikes in images here is the matching speedo.

- available in 1:4, 1:5 or 1:7 gear ratio.

The following is a general guide only:
1:4 = Honda CB750's and other large cc Japanese bikes,
1:5 = most Kawasaki's and Yamaha’s,
1:7 = most pre-1980 Honda CB's up to 550cc and other small cc Japanese bikes.

To confirm, you’ll need to carry out a thorough internet search. Alternatively, you can turn the engine over slowly by hand, counting the number of times the cable rotates for each revolution of the engine.
