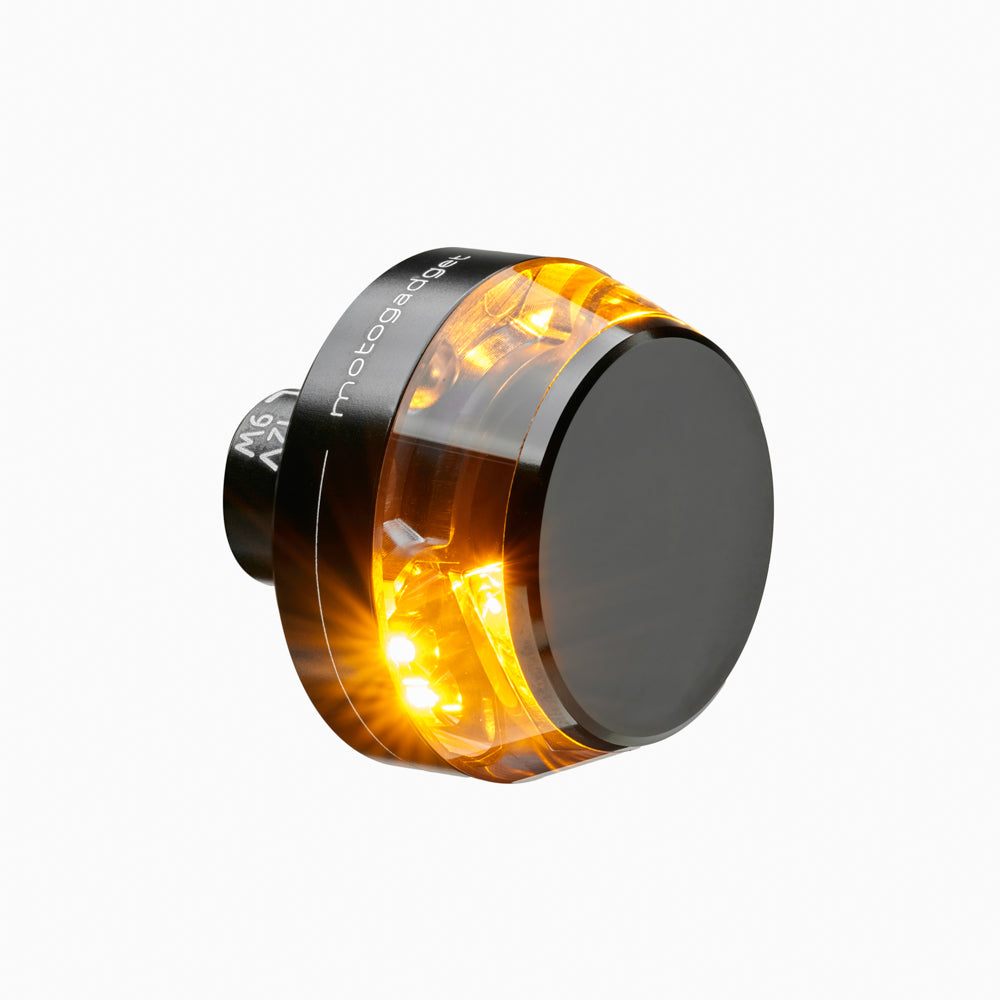

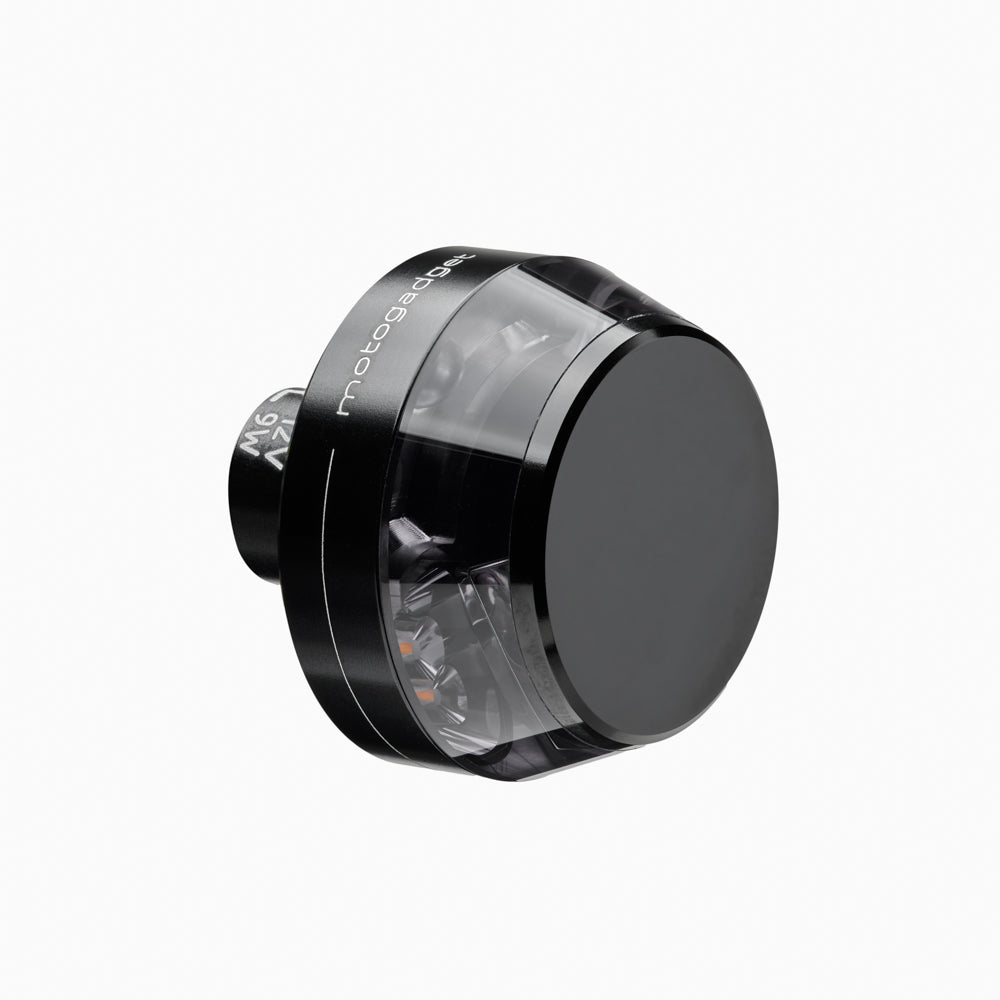

Motogadget mo.blaze Disc Bar-end Indicator, Dark

ORDER A PAIR AND SHIPPING IS FREE*

Discover the dark side - a tinted look makes the mo.blaze disc disappear on the handlebars and emits light from all sides. An innovative top product, handmade in Berlin. The design and high-quality appearance make the mo.blaze disc a highly regarded design classic. Suitable for 14 to 21mm handlebar inner diameter.

The mo.blaze disc is the latest generation of indicator. The characteristic feature of the LED blinker is the transparent lens on a compact aluminium base, which harmonises with the handlebar end grip.

Uses the new TranzLight technology (TLT, patent pending). This progressive development approach is not limited to simple miniaturization of turn signal housings, but designs the light directly via a crystal-like plastic body. Only precise optical CAD calculations and state-of-the-art manufacturing processes make this novel design and its function possible.

The light flux required for the TranzLight principle is generated by the intensiLED® process developed by intensiLED® process developed by motogadget and consists of three important components:

• selected high-performance LEDs with maximum efficiency and a total output of 9W with a service life of more than 50,000 hours
• an IC-controlled constant current regulation clocked at 330kHz
• a special collimator optic that couples the light from the LED precisely into the plastic body

The discreet CNC-machined aluminium housing is only used for the stable attachment of the glass body and the integration of control electronics and high-end LEDs. Available here in black anodised and finely laser-marked.

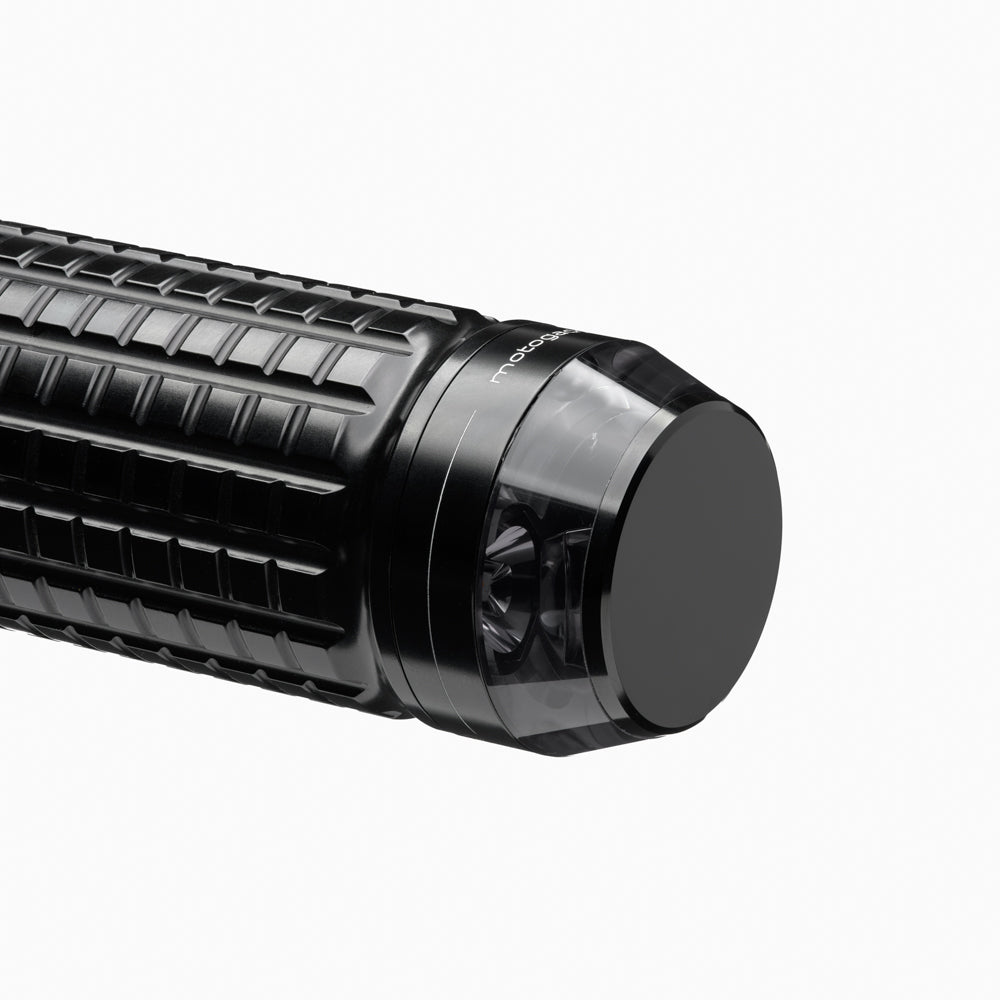

The handlebar-end indicator sits very flat and appears through the transparent disc neutral and inconspicuous. Thus, it fits many styles and the most diverse motorcycles. The indicator can be operated like any other LED indicator with load resistors or any load-independent flasher relay (mo.flash, mo.wave, mo.stop, mo.relay+, etc.).

The handlebar end indicator mo.blaze disc presented here has an E-mark
and is ECE-approved as a front indicator.

Specifications

• Diameter: 35 mm
• Total length: 68 mm (visible 20mm / in the handlebar 48mm)
• Voltage: 12V
• Power: 9W
• Waterproof - degree of protection IP69
• Vibration resistant
• 3 x high-power LEDs (2 to the front, 1 to the rear)
• Service life: 50000hrs
• Cable length: approx. 1m
• Weight approx. 50g

Package Contents

• 1 x handlebar end indicator mo.blaze disc left or right
• Clamp for steel and aluminum handlebars (22 mm and 1 inch handlebars) with an inner diameter of 14 mm to 21 mm
• Connection cable with 1m length
• 2 x 3M Scotch Lok connectors
• QR code for mounting and operating instructions


For use as a pair, please order one left and one right.
