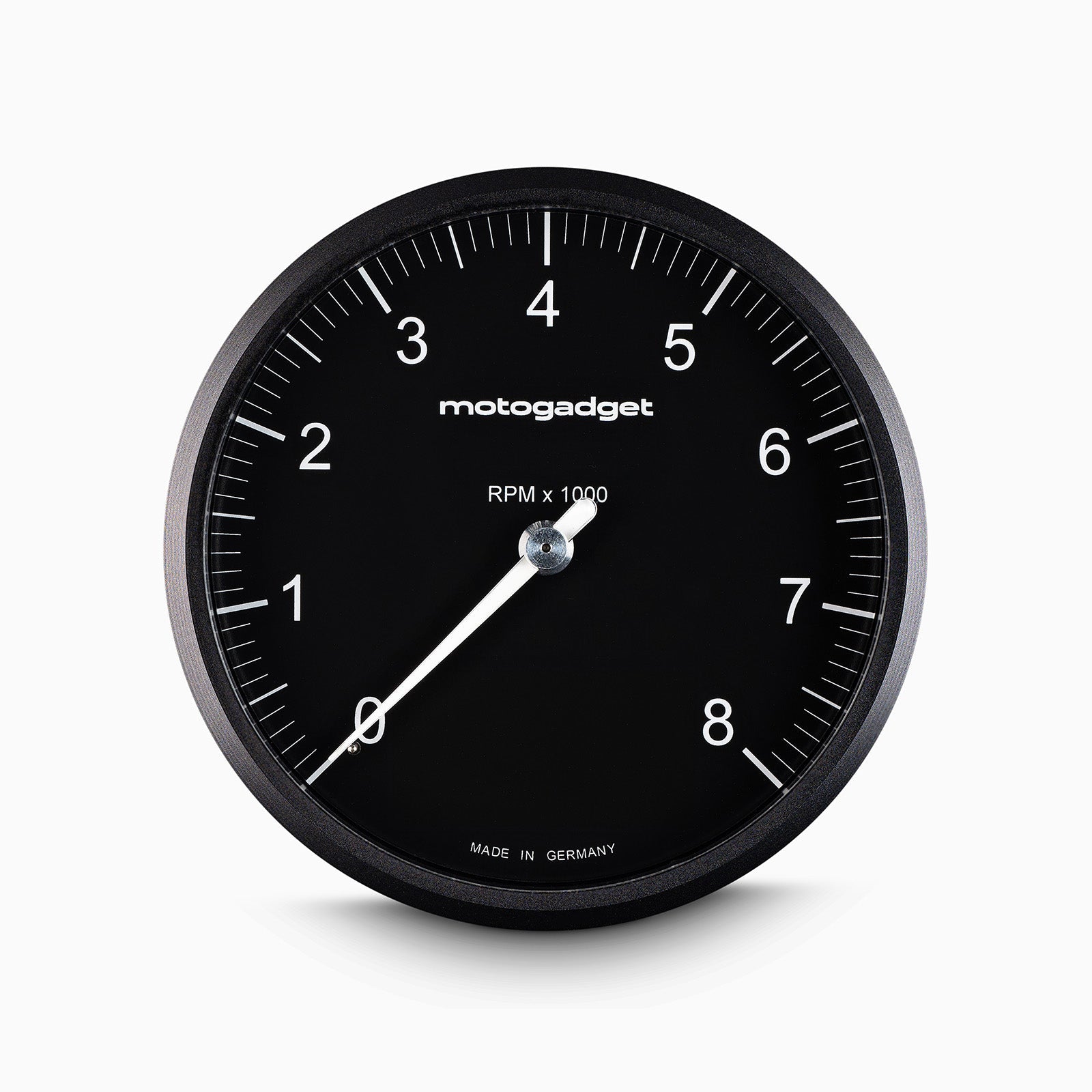

Motogadget Chronoclassic 2, 8k

PRE-ORDER NOW, DISPATCHES IN 2 TO 4 WEEKS

motogadget's most innovative round instrument with invisible LED display. Classic on the outside - high-tech on the inside.

More than 20 years of experience have gone into the development of motogadget's flattest and most innovative round instrument.

When switched off, the black dial ensures the perfect look: modern, minimalist and timelessly classic at the same time. The digital display, an in-house development by motogadget, consists of a matrix of 512 tiny, super-bright red LEDs and shines through the dial - unique on the accessories market.

Perfectly legible in direct sunlight, the display has two lines. The top line shows the gear and speed and the bottom line shows the display values, which can be changed at the touch of a button. The illuminated pointer, perfectly illuminated backlighting and automatic brightness adjustment of the matrix LEDs ensure optimum readability even in dark surroundings.

11 indicator lights are invisible when switched off and shine through the dial.

Specifications

Overall diameter: 83mm

Mounting diameter x depth: 80mm x34 mm

Weight incl. connection cable: 220g

Mounting threads: 3 x M3, 4mm deep

Power consumption: max. 200mA

Standby current: 400μA

Operating voltage: 9 – 15V

Operating Temperature: -20°... + 80°C

Display: motogadget - DOT Matrix made from 512 individual LED

Indicator lights

• Reserve
• Oil temperature / water temperature
• Engine control / MIL
• Oil pressure
• Turn signal left
• Turn signal right
• High beam
• Neutral
• Universal warning light

Analog dial

• White illuminated needle
• Scale: 8,000 RPM

Shift lightning

• adjustable 0 - 20000 RPM

Display

• Gear indicator
• Speed 999 [km/h/mph]
• Trip A 999.9 [km/mi]
• Trip B 999.9 [km/mi]
• Odometer 999999 [km/mi]
• Speed 0-14,000 [rpm]
• Oil temperature 0-200 [°C / °F]
• Water temperature 0-200 [°C/°F]
• Air temperature -20 - 100 [°C/°F]
• Oil pressure 0 - 10.0 [bar/psi]
• Operating hours counter 9999 [h]
• Travel time [h:mm:ss]
• clock
• Time 0-100 km/h - 99.99 s
• Acceleration 0 - 2.00 [G]
• Average speed 999 [km/h/mph]
• Maximum speed 999 [km/h/mph]
• Maximum positive acceleration 0 - 2.00 [G]
• Maximum negative acceleration 0 - -2.00 [G]
• Maximum speed 20000 [rpm]
• On-board voltage 9 - 18 [V]
• Fuel gauge 0 - 100 [%]

Adjustable warning messages

• Oil temperature
• Water temperature
• On-board voltage
• Air temperature
• Oil pressure
• Tank capacity
• Service interval
• Speed warning (gearshift flash)

Package Contents

• motoscope chronoclassic 2 with 75cm connection cable & plug connection
• Cable fuse
• Speedometer sensor with 150 cm connection cable & two magnets
• Mini pushbutton
• Stainless steel mounting screws
• QR code for mounting and operating instructions

Sold separately:

• Breakout box (connection of indicator lights and sensors)
• Universal retaining plate and cup (aluminium, CNC, black anodized)
